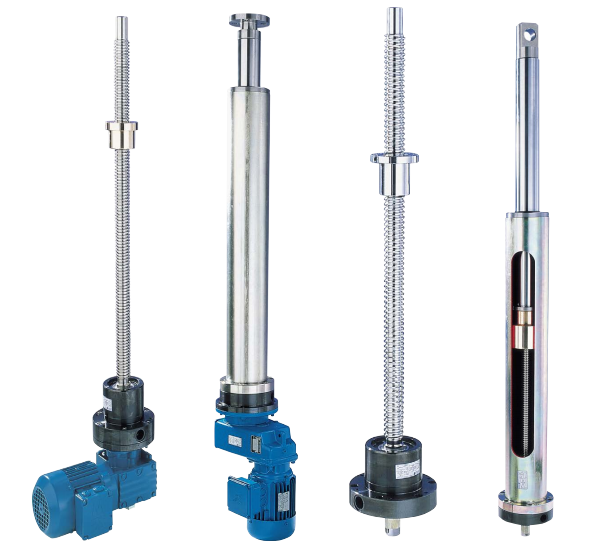

ALS系列電動推桿
發布日期：2020-10-24
Design features/設計功能
§ 4 different sizes with max. dynamic axial loads from
ALS 10: 12.5 kN
ALS 25: 25 kN
ALS 50: 50 kN
ALS 100: 100 kN
§ Self-locking trapezoidal screw
§ Attachment options for any flange connection capable gear motor in solid or hollow shaft design
§ Long-term lubrication by high-quality grease and encapsulated design
§ Special screw diameter and pitches possible
§ Comprehensive accessories range
§ Possible usage according to directive 2014/34/EU (ATEX)

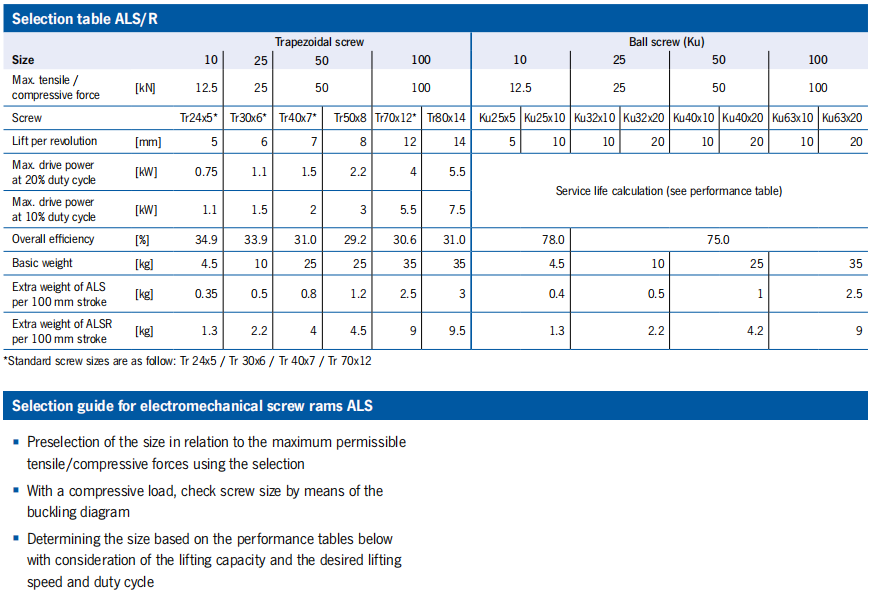

ALS/R Selection table

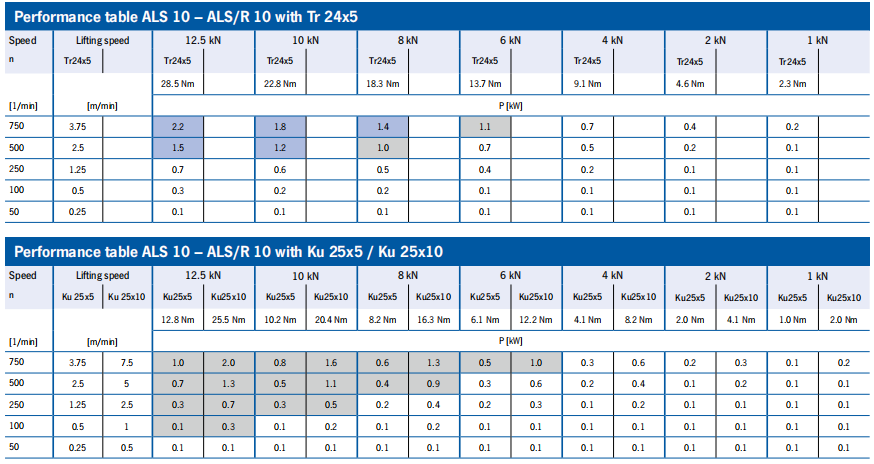

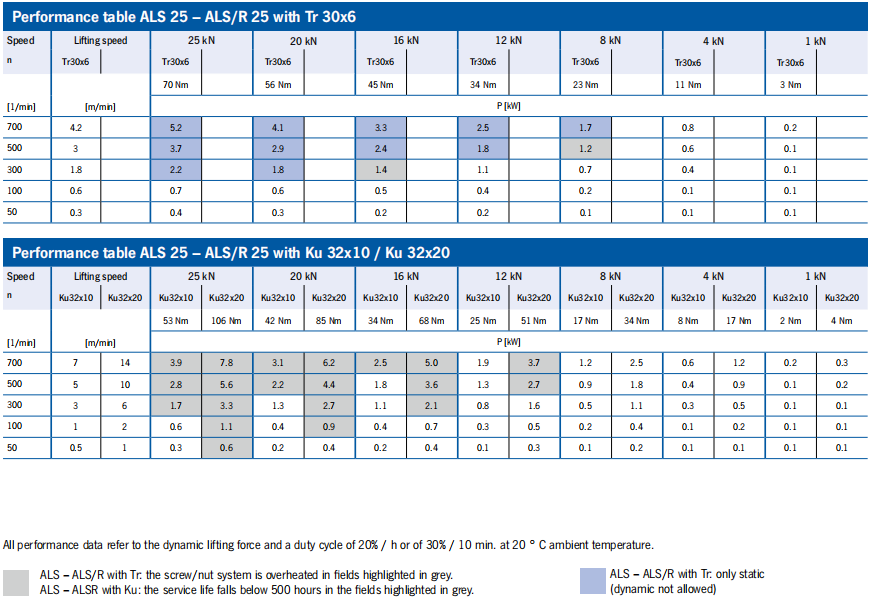

ALS/R Performance data tables ALS 10/25

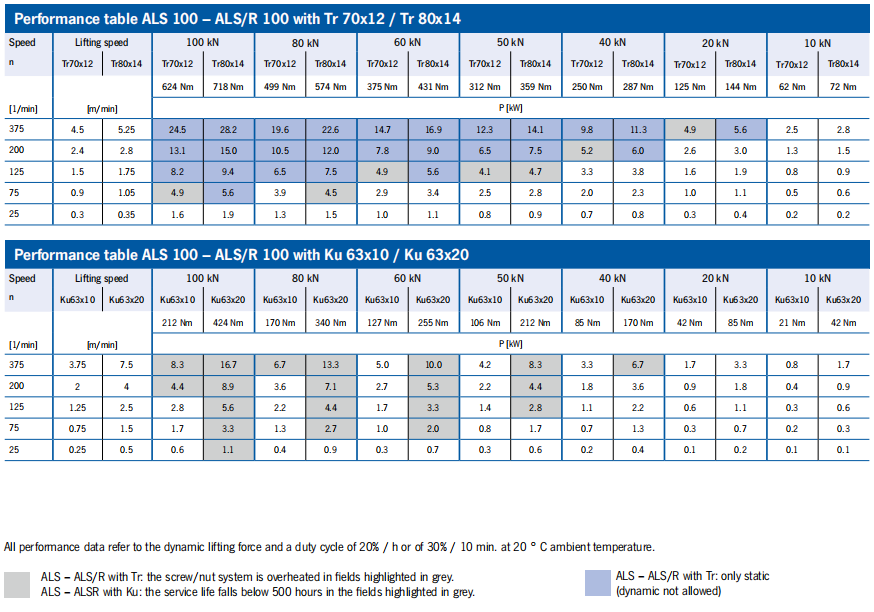

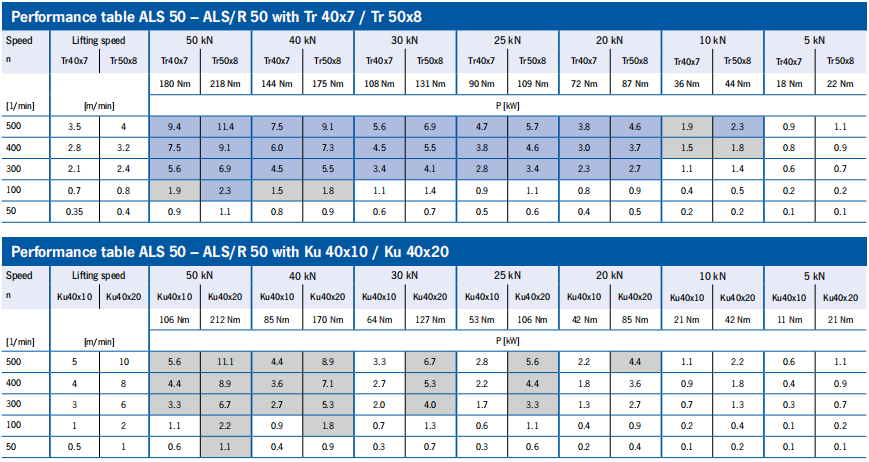

ALS/R Performance data tables ALS 50/100

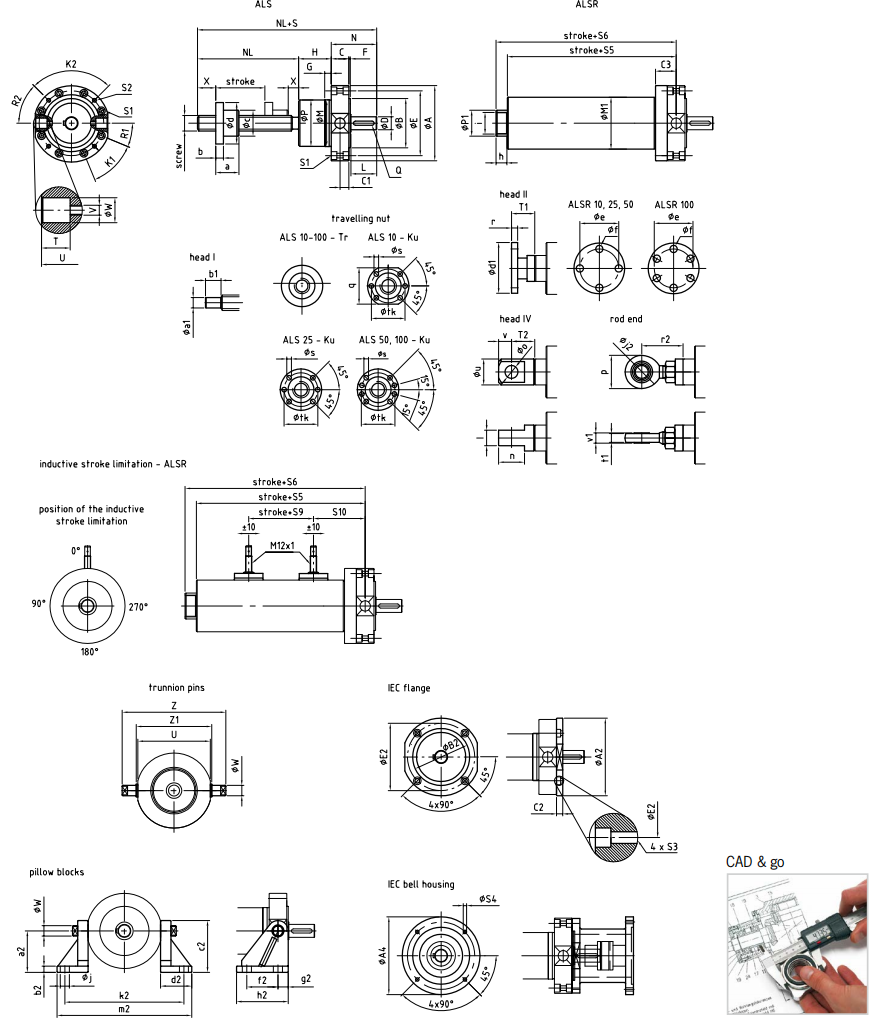

ALS/R Technical drawings

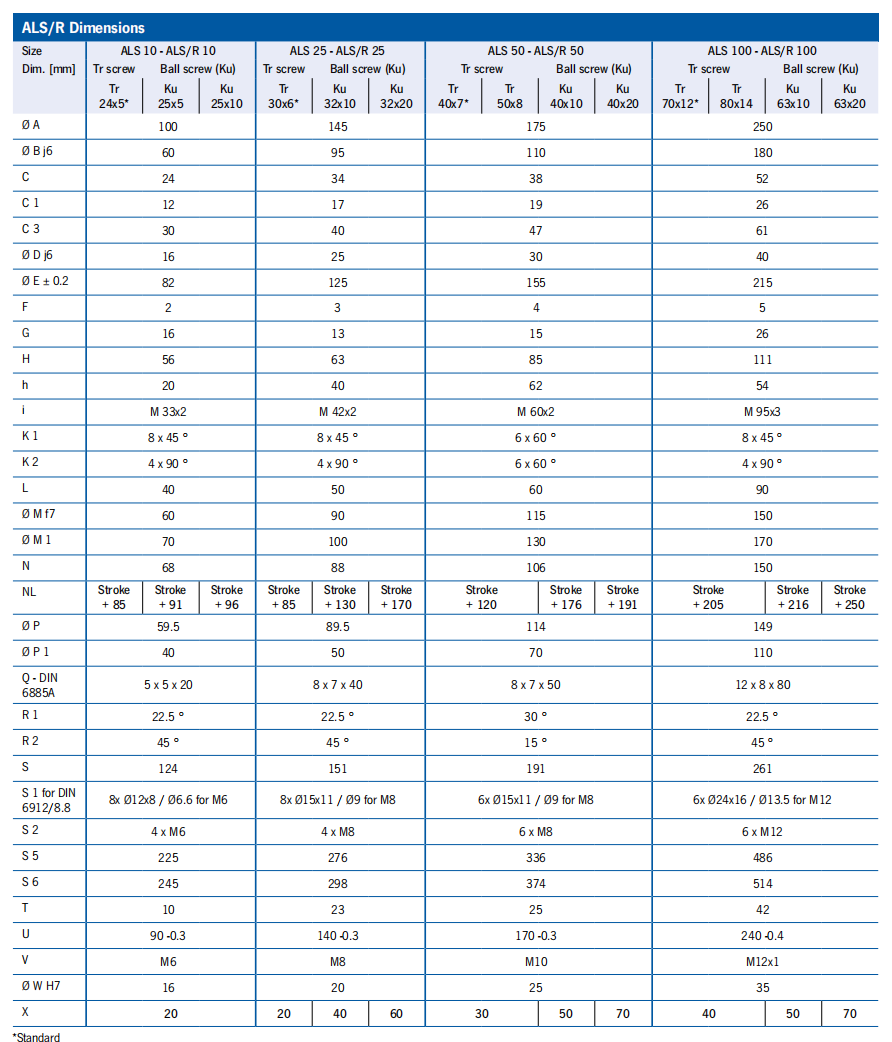

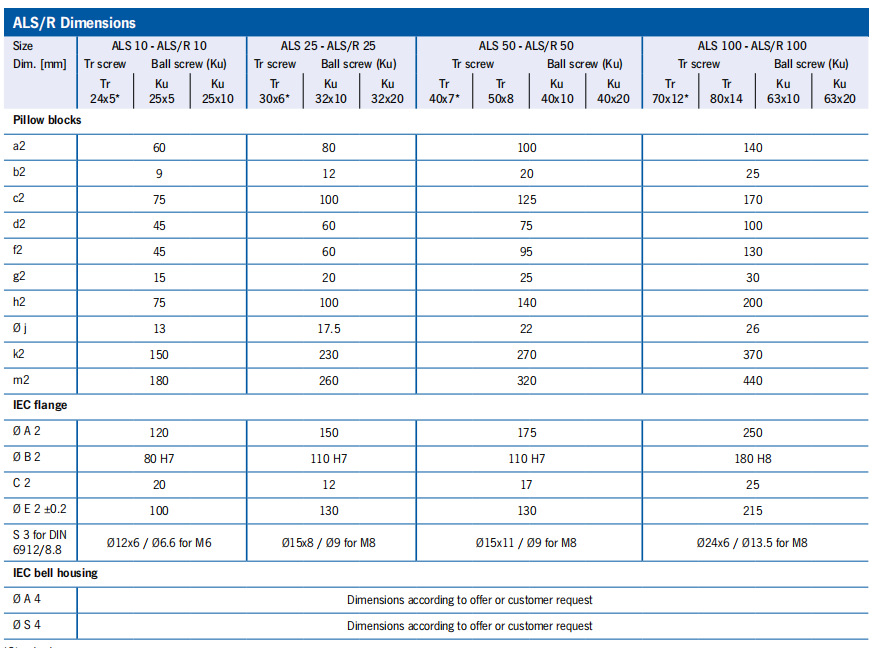

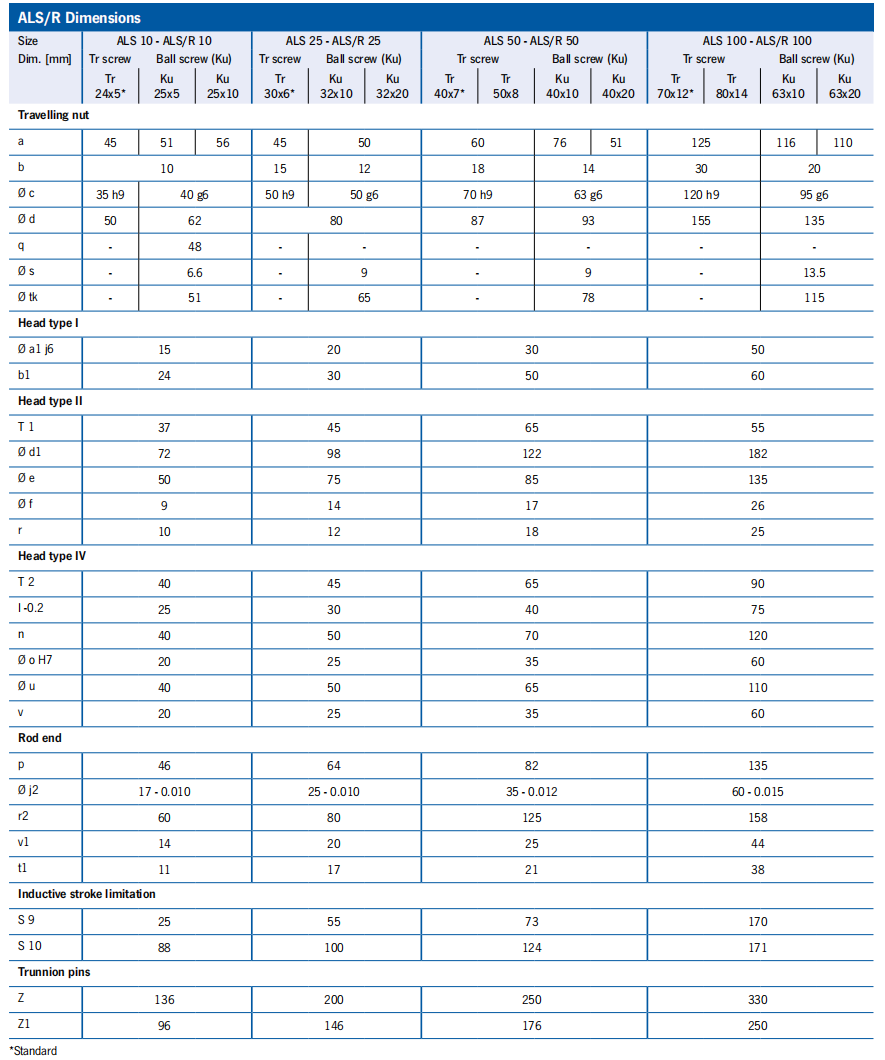

ALS/R Dimensions
ALS/R Dimensions
ALS/R Dimensions

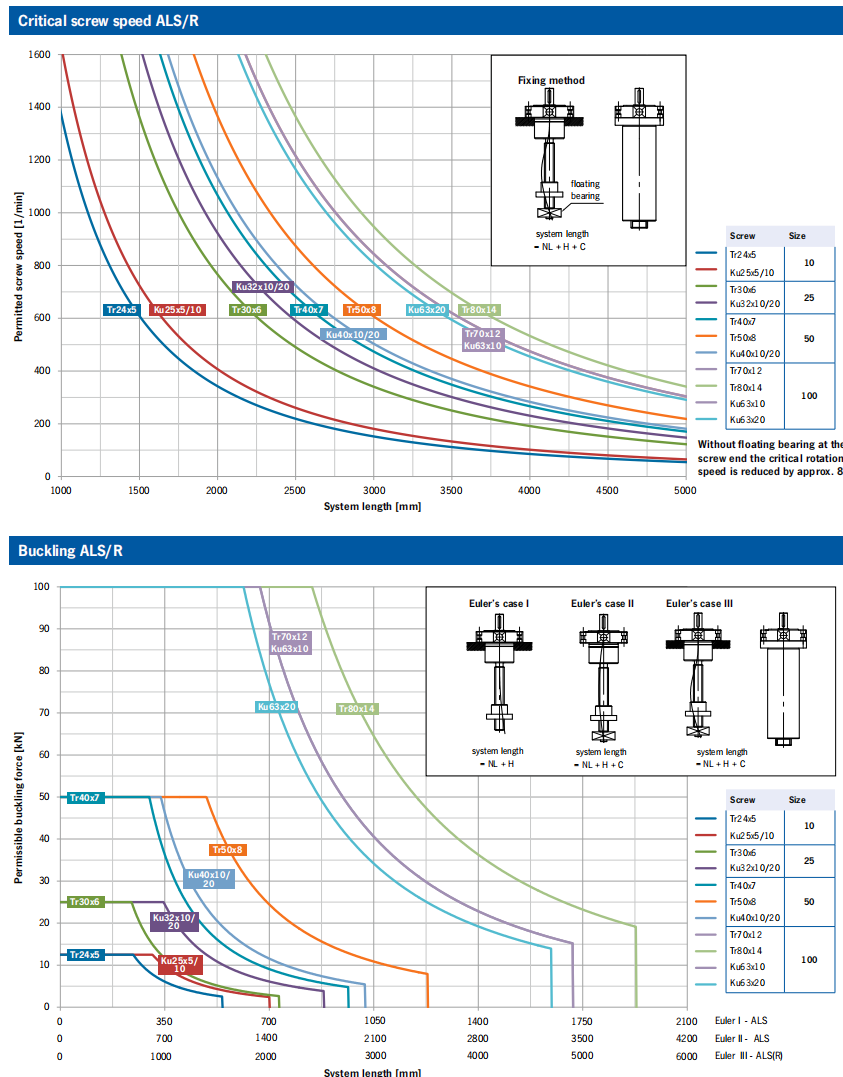

ALS/R Diagrams
Critical screw speed ALS/R

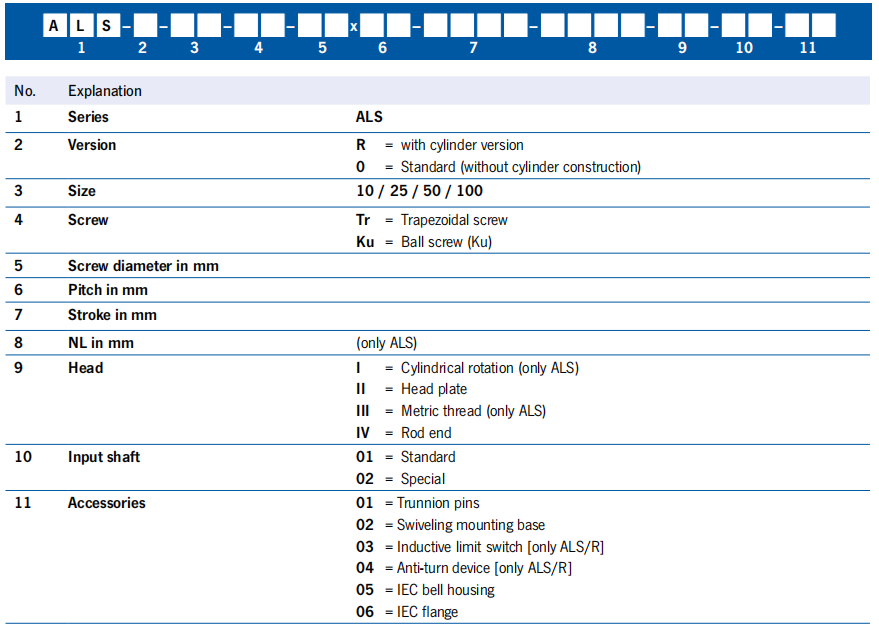

ALS/R Order code
