ELA Electromechanical linear actuator

Design features

4 sizes with max. dynamic axial loads from

ELA 10.1: 2.0 kN

ELA 20.1: 3.5 kN

ELA 30.1: 6.0 kN

ELA 40.1: 10.0 kN

§ Three-phase motor AC (standard) with IEC-flange B14

§ Optional direct-current motor or alternating-current motor

§ Optional with brake

§ Self-locking trapezoidal screws

§ Worm gear with different reductions

§ Service life lubrication under normal operating conditions  from high-quality grease and encapsulated design

§ Comprehensive accessories range

§ Possible usage according to directive 2014/34/EU (ATEX)

ELA Selection tables

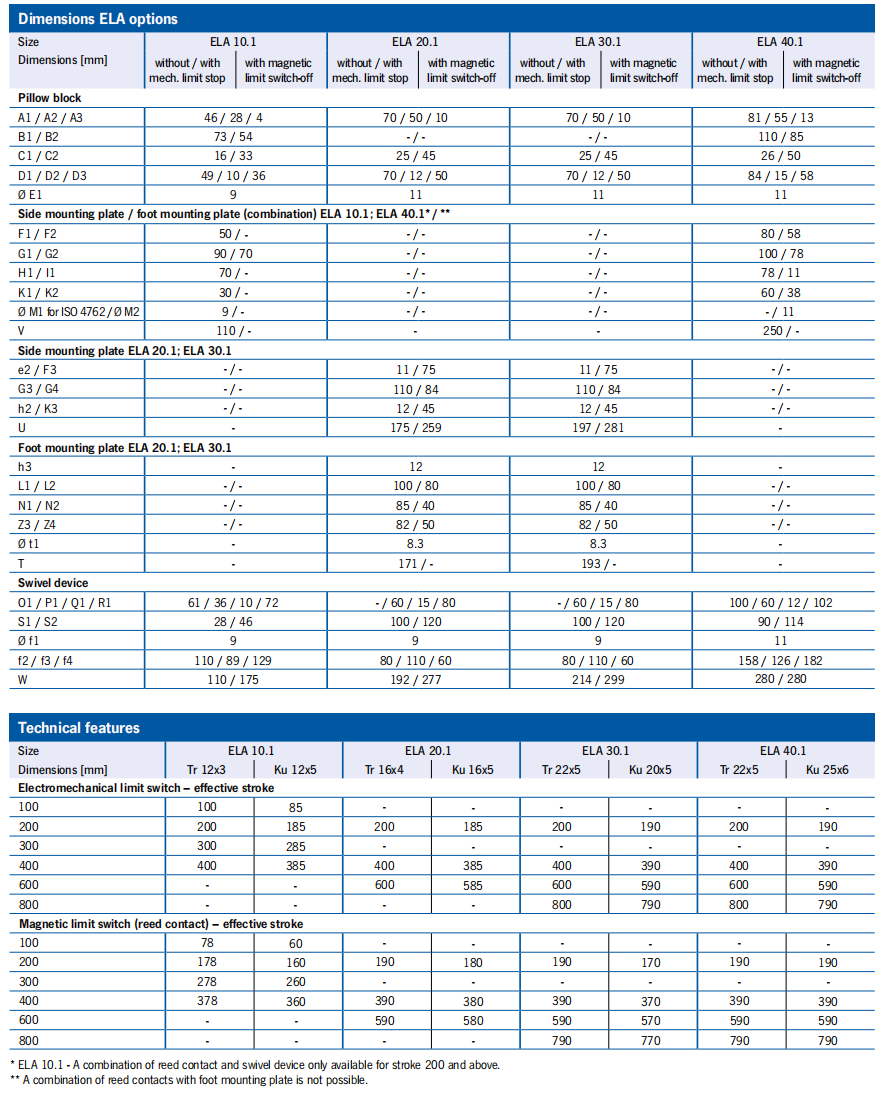

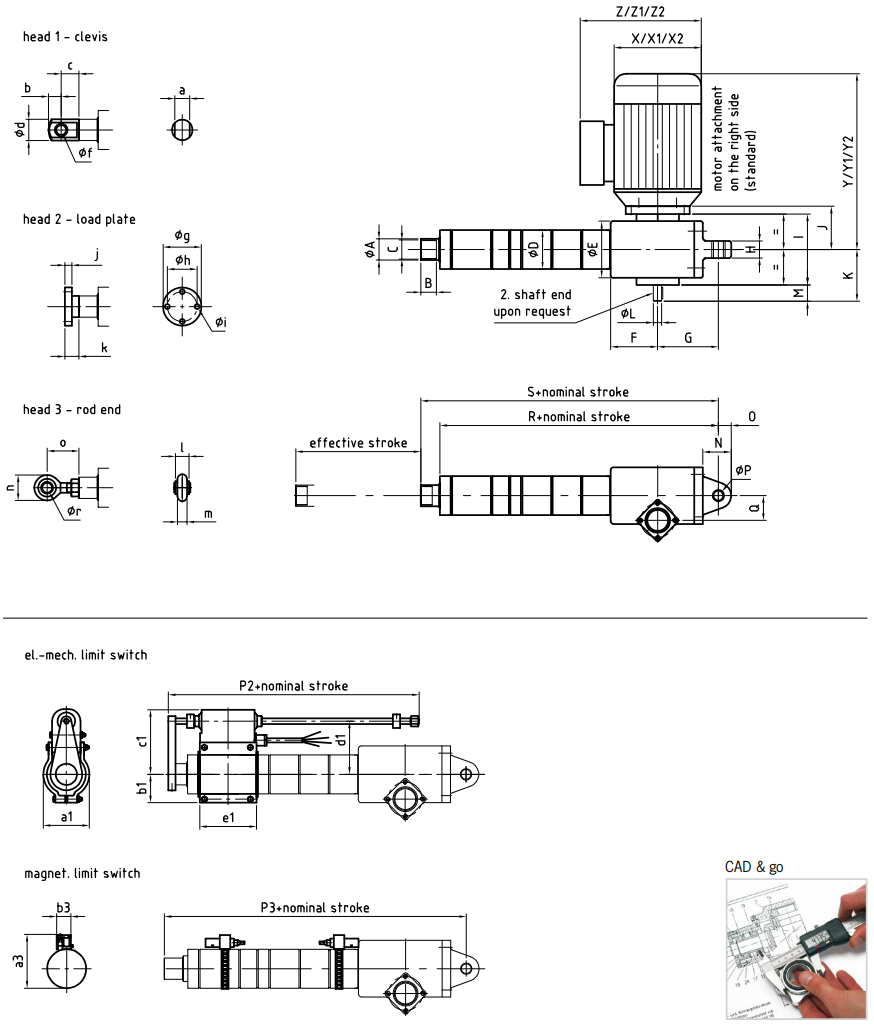

ELA 10.1, 20.1, 30.1, 40.1 Technical drawings

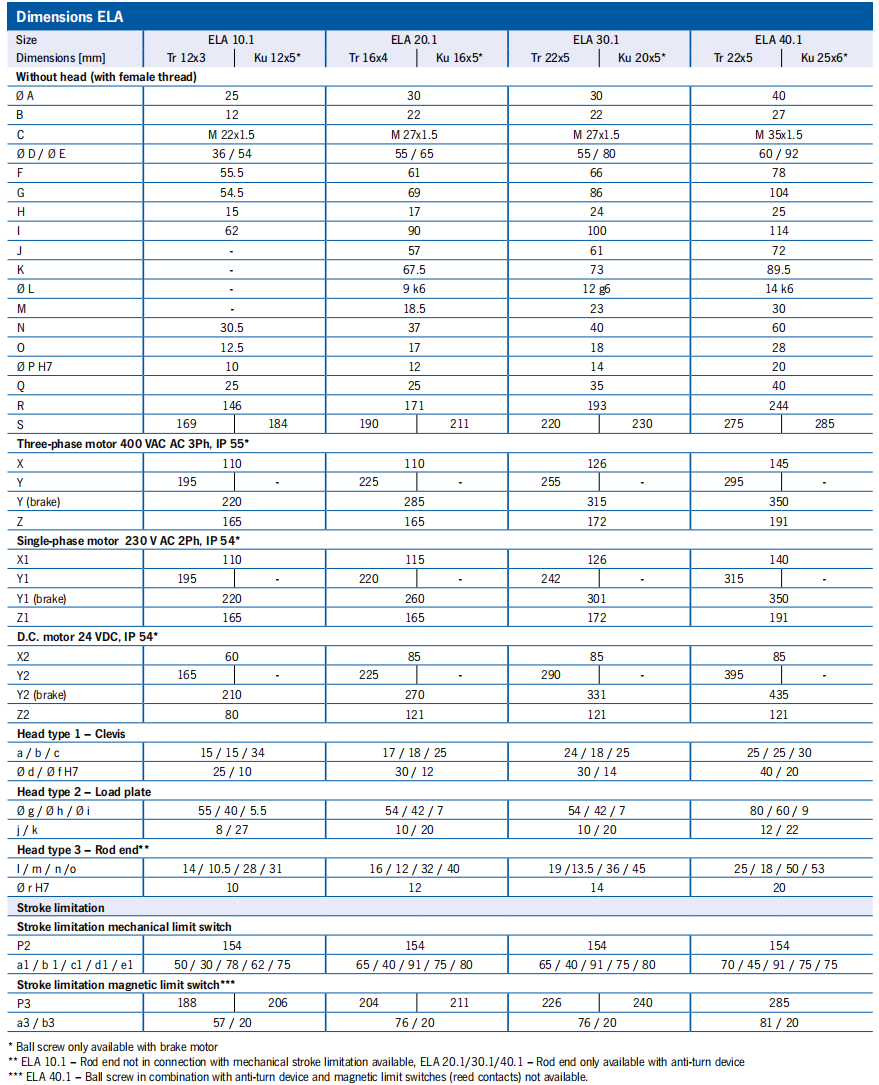

ELA 10.1, 20.1, 30.1, 40.1 Dimensions

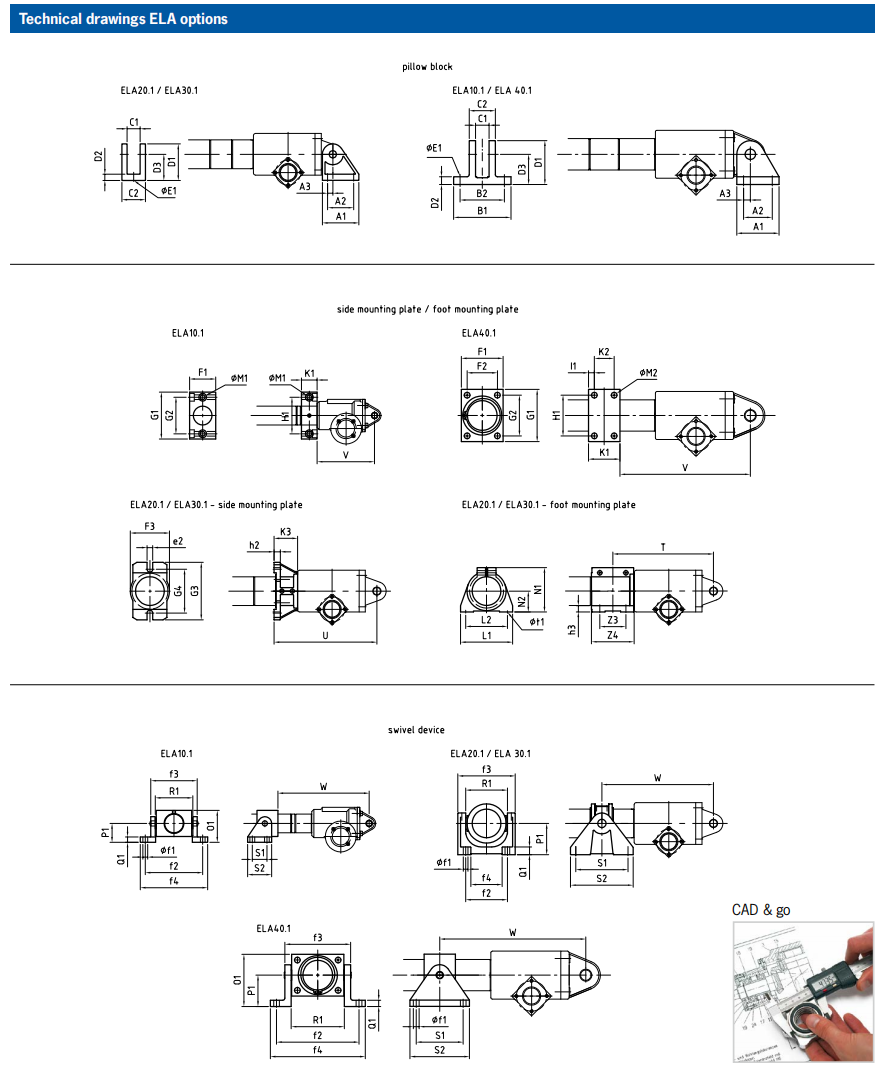

ELA 10.1, 20.1, 30.1, 40.1 Technical drawings

ELA 10.1, 20.1, 30.1, 40.1 Dimensions

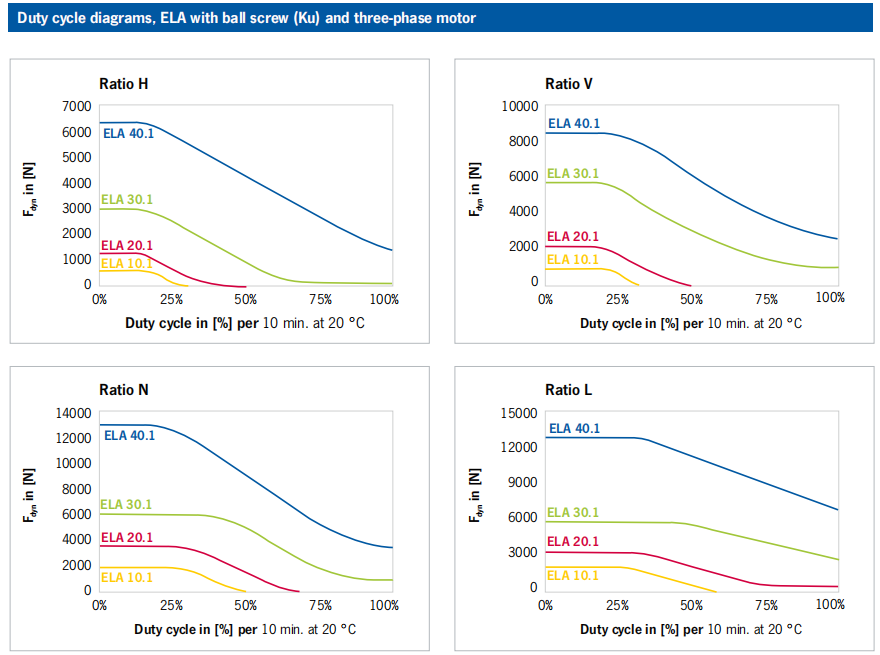

ELA  Duty cycle diagrams

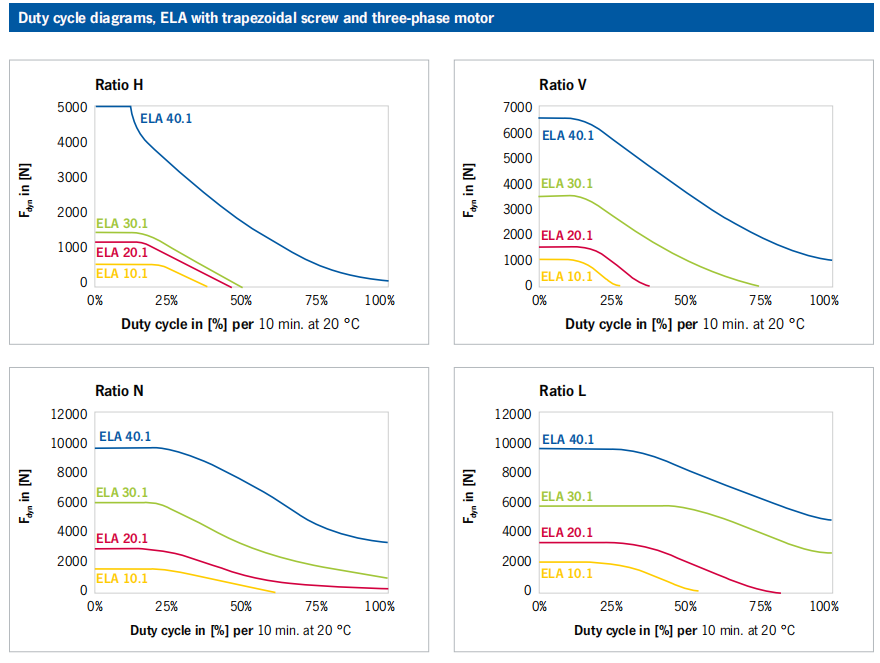

ELA  Duty cycle diagrams

ELA Options

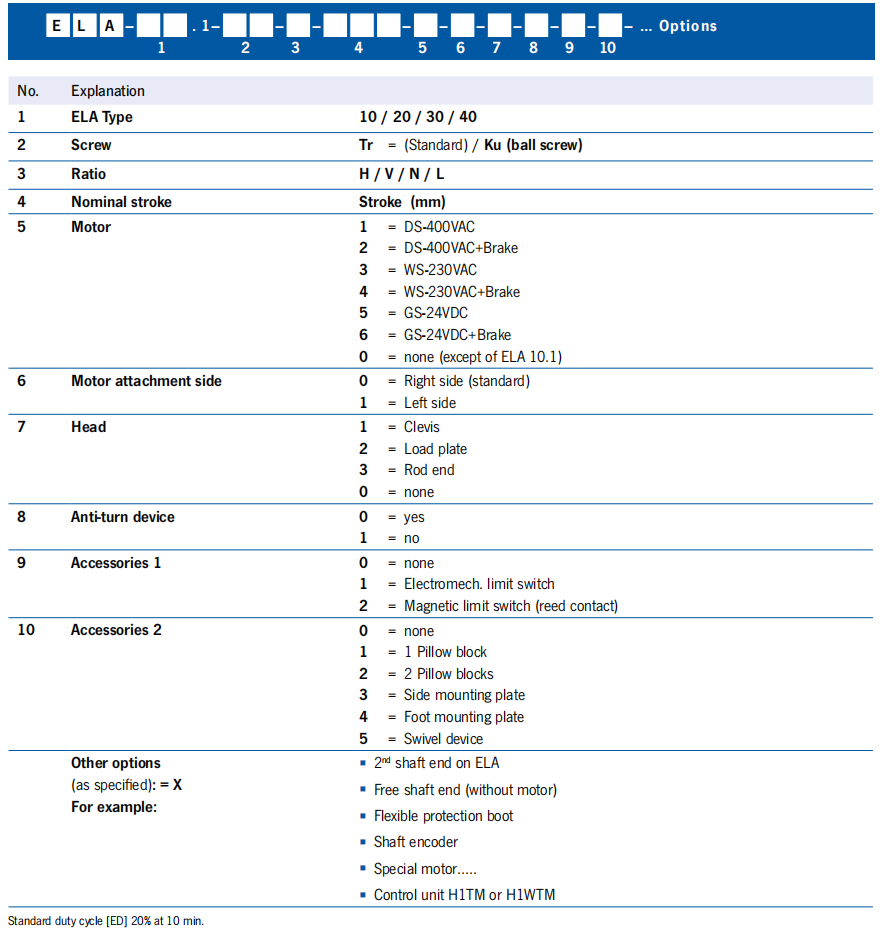

ELA Order code

Design features
