HLA高性能線性執(zhí)行器
發(fā)布日期：2020-10-24

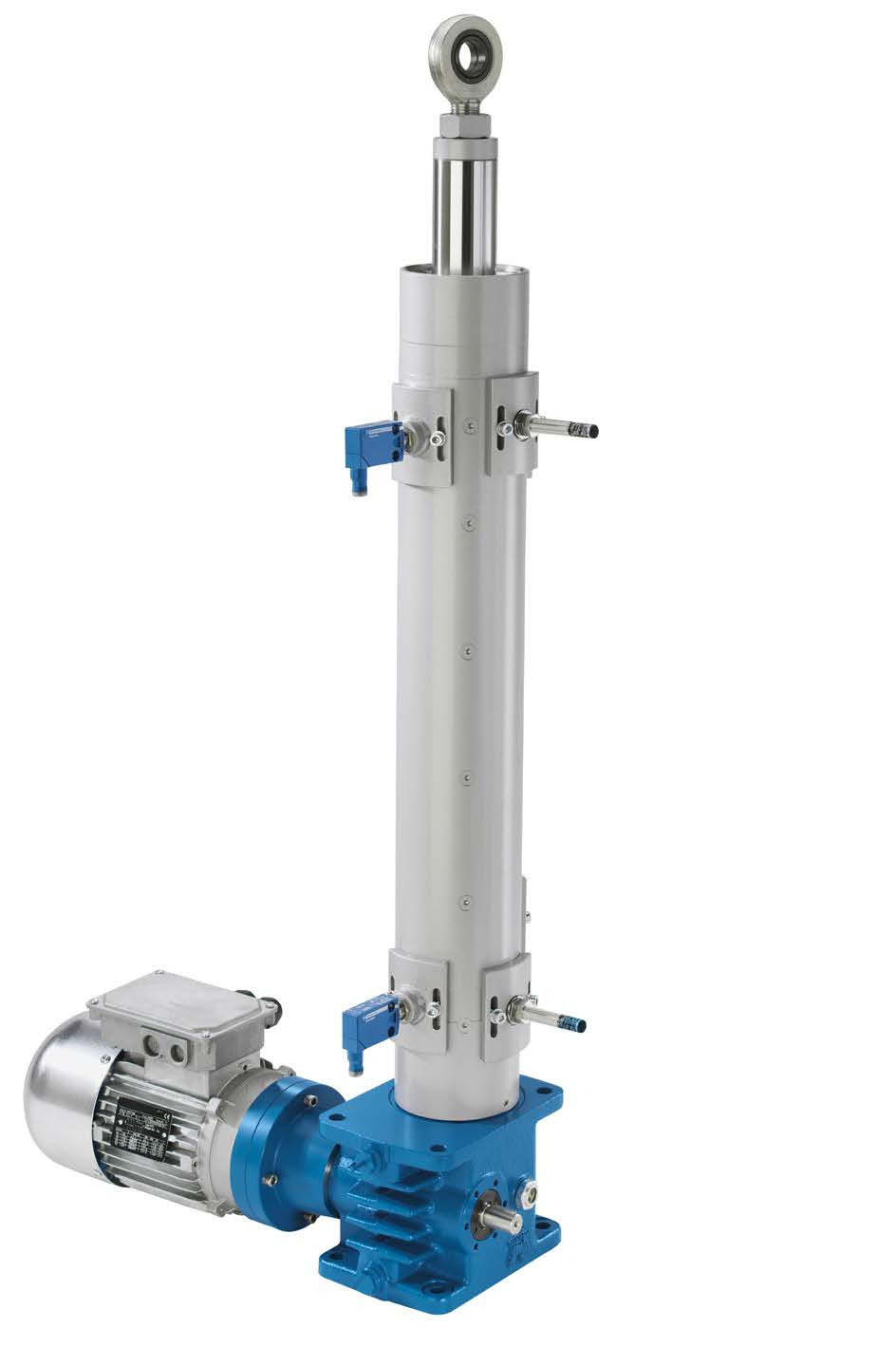

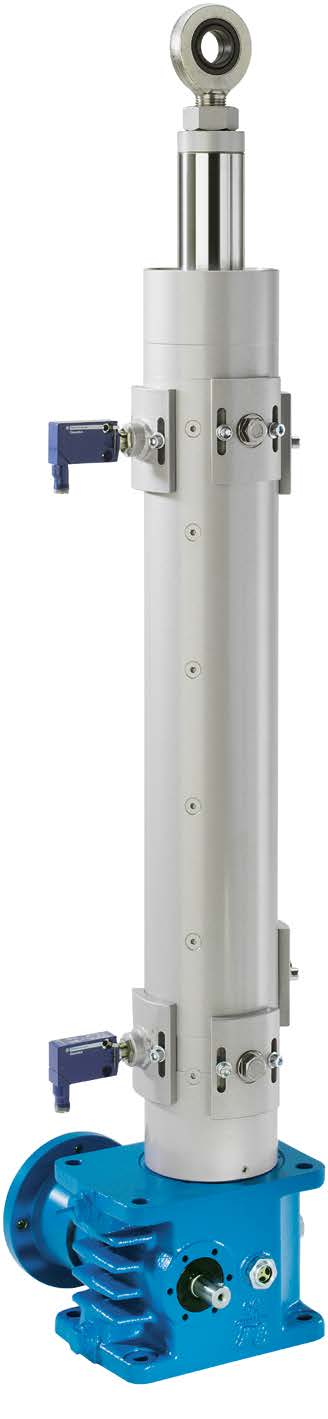

HLA High-performance linear actuator
4 sizes with maximum dynamic axial loads from
HLA 10: 12.5
kN HLA 25: 25
kN HLA 50: 50
kN HLA 100: 100 kN
§ Self-locking trapezoidal screw
§ Possible use in multi-screw lifting systems
§ Several single drives can be synchronized
§ Attachment options for any flange connection capable gear motor
§ Optional short safety nut possible
§ Low-maintenance from high-quality grease and encapsulated design
§ Comprehensive accessories range
§ Possible usage according to directive 2014/34/EU (ATEX)

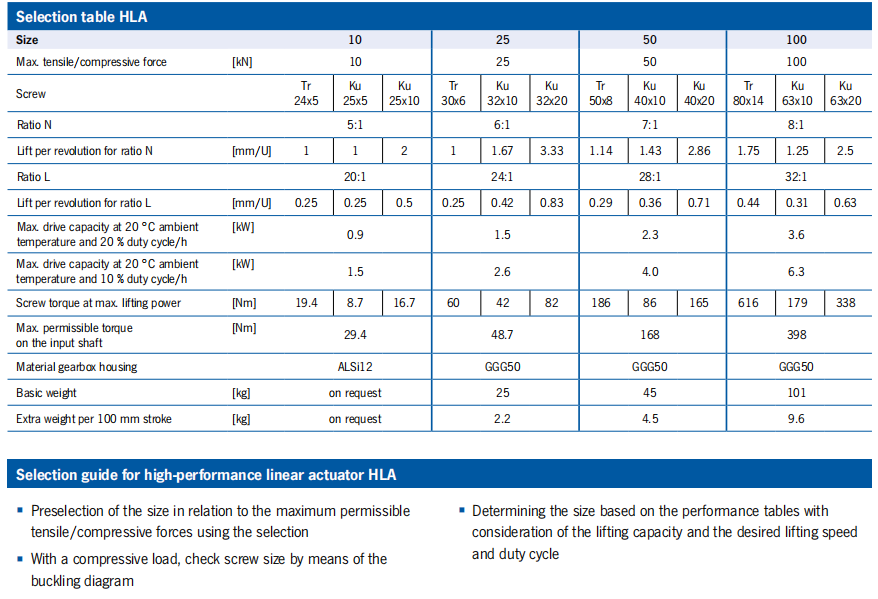

HLA Selection table

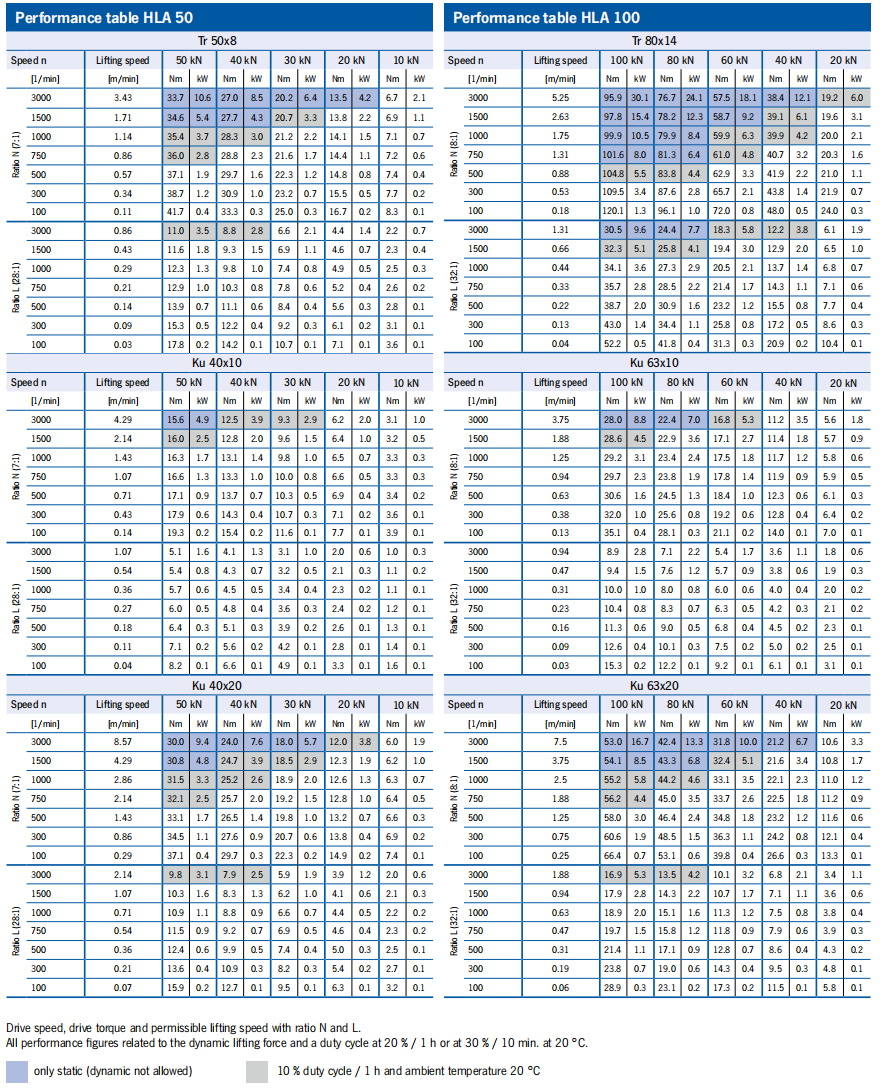

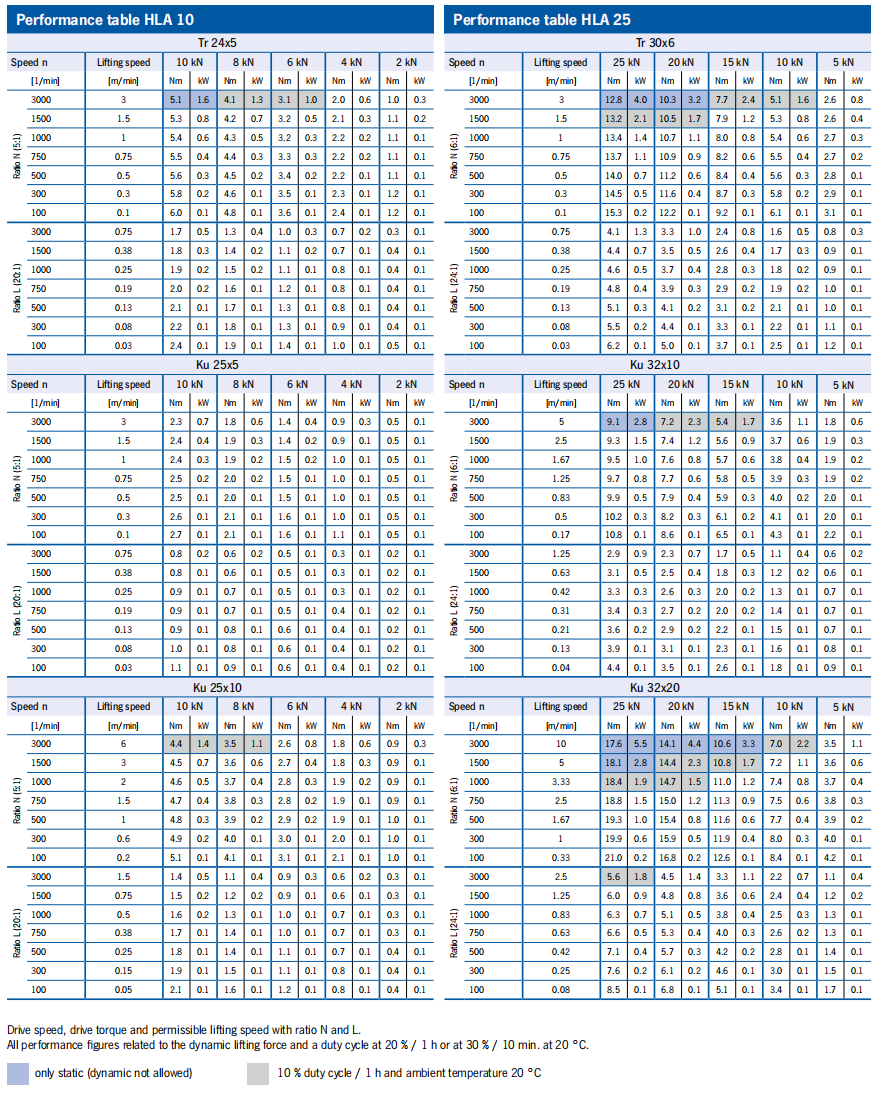

HLA Performance tables
HLA Performance tables

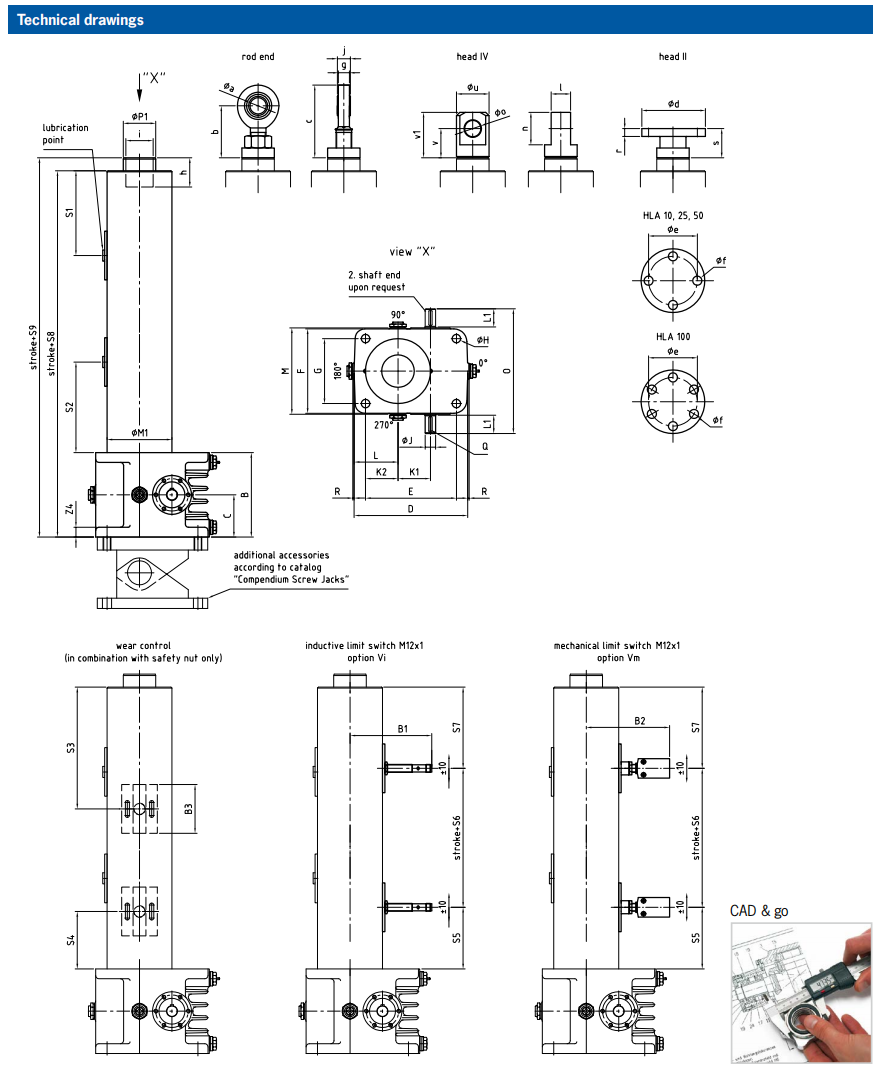

HLA Technical drawings

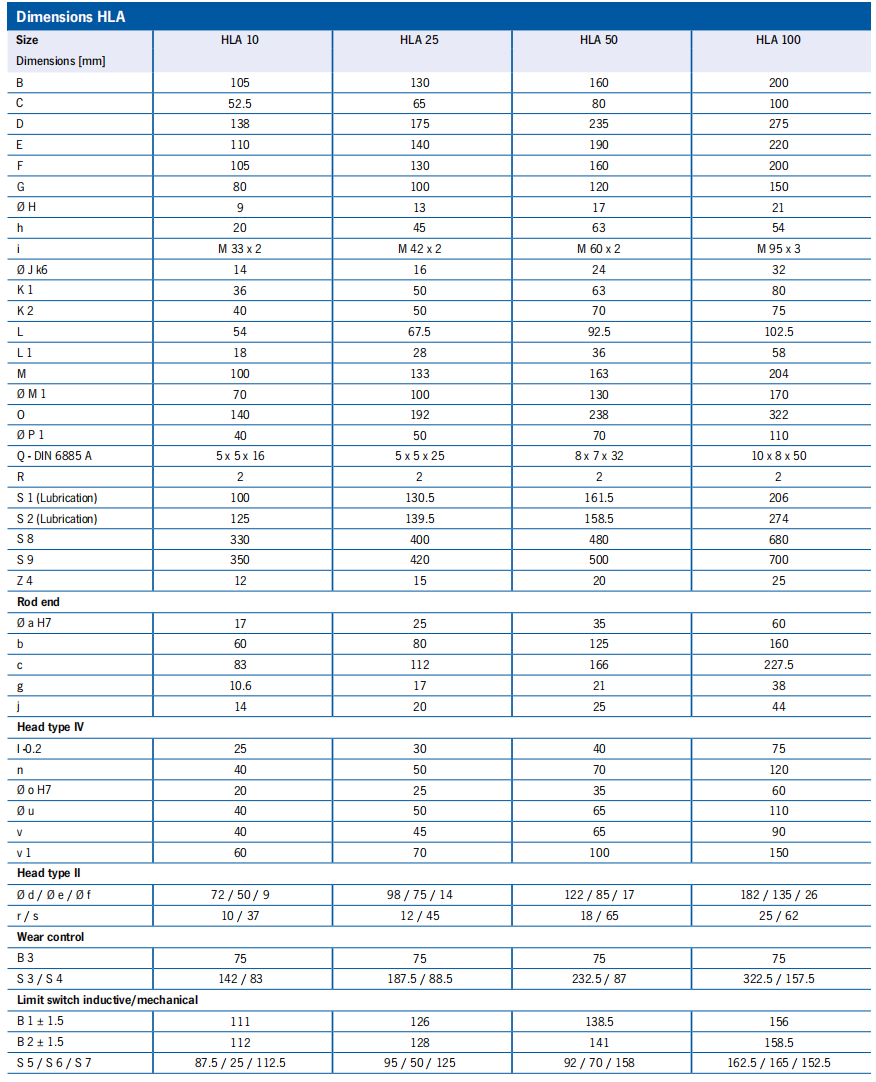

HLA Dimensions

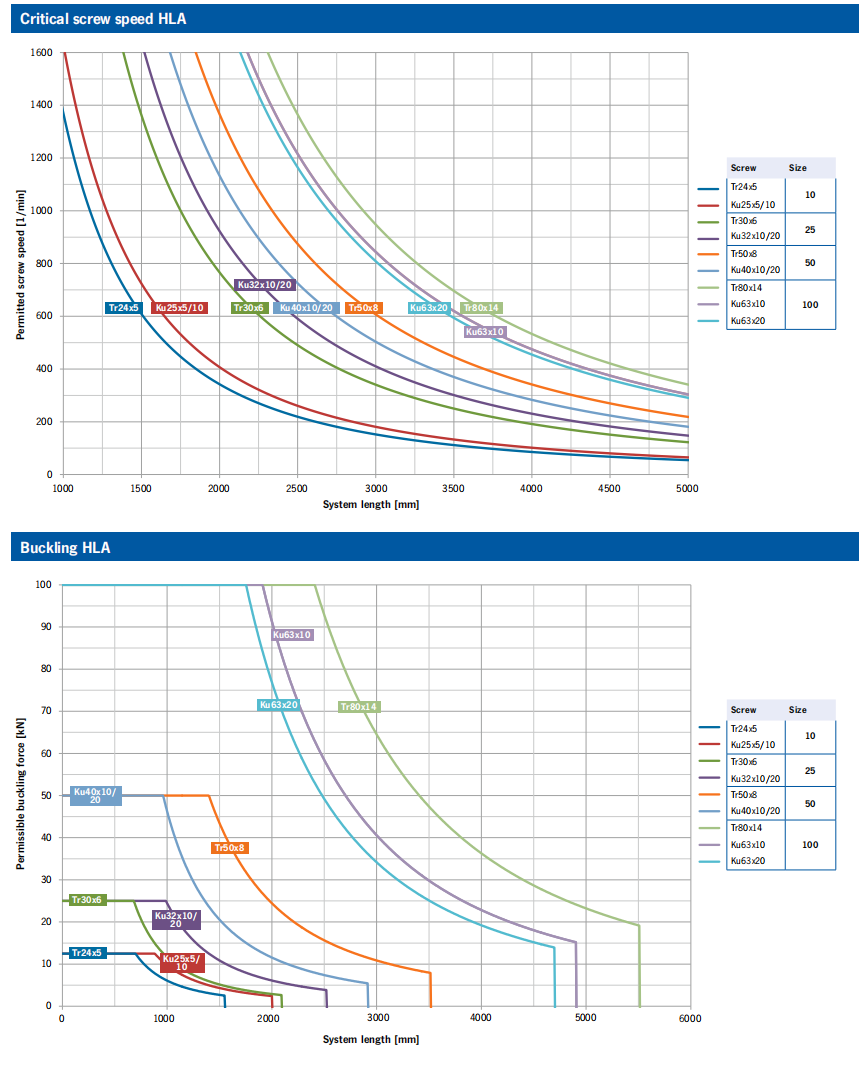

HLA Diagrams

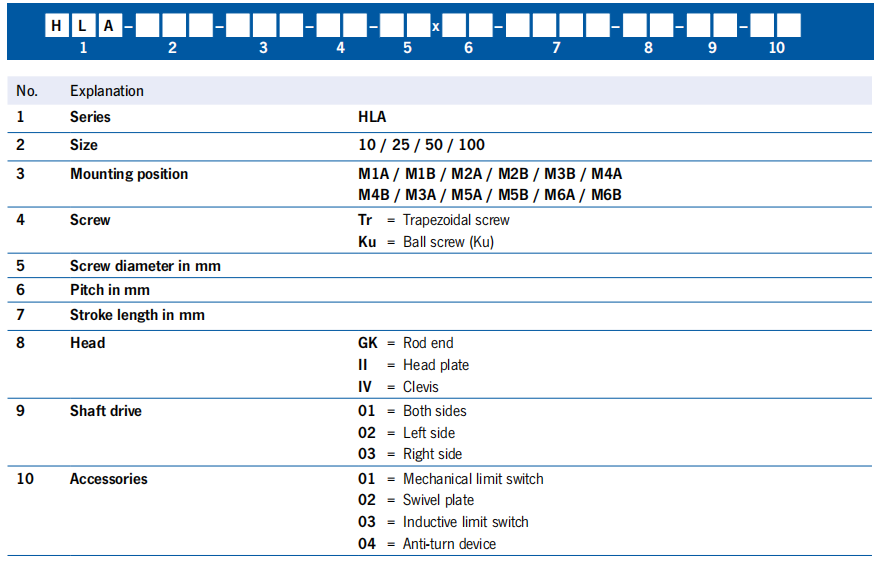

HLA Order code
